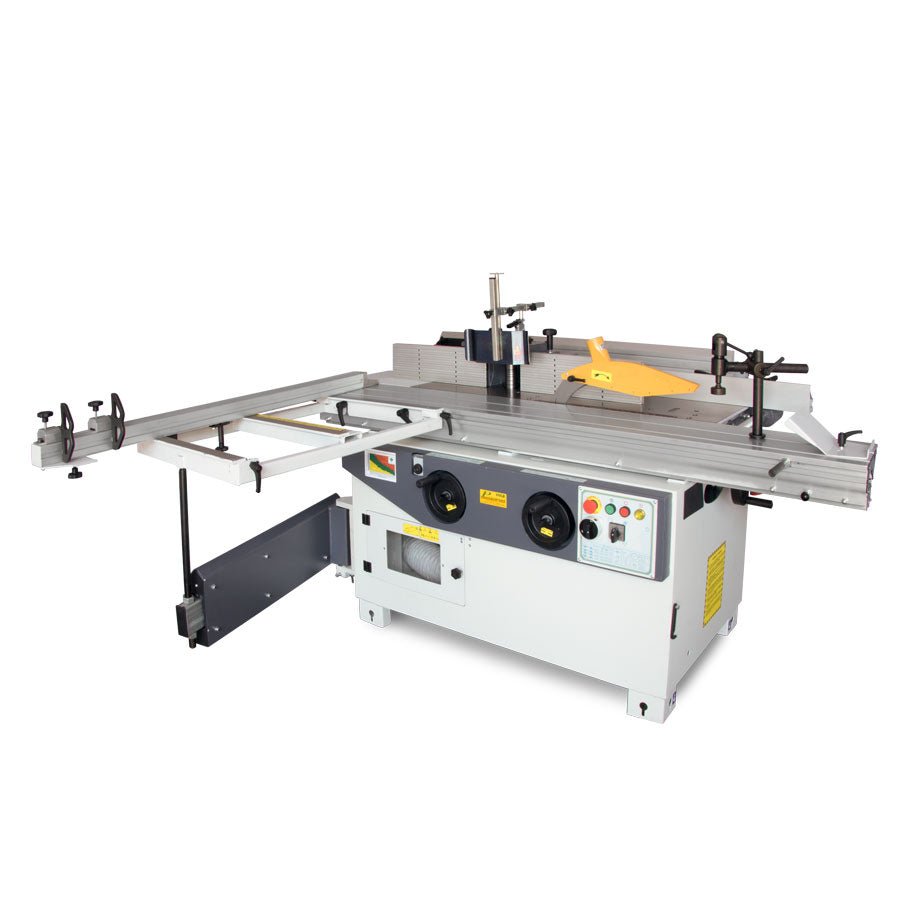

K5-32-2,0-3kW-IE-A comb. 5-operation machine
K5-32-2,0-3kW-IE-A comb. 5-operation machine
Regular price
29,380.00 GEL
Regular price
Sale price
29,380.00 GEL
Taxes included.
| Planer: | |
| Table width | 320 mm |
| Table length | 1500 mm |
| Shaft diameter | 100 mm |
| Pieces of knives | 3 Stück |
| Rotation speed | 5000 |
| Engine power | 3,8 kW S6 400V (3kW S1) |
| Thicknesser: | |
| Work piece height, min/max | 4 - 230 mm |
| Feeding speed | 7m/min |
| Spindle shaper: | |
| Max. workpiece height | 125 mm |
| Spindle travel | 160 mm |
| Max. tool diameter below table | 180 mm |
| Max. tool diameter above table | 250 mm |
| Spindle speeds | 8000/6000/3500/1400 |
| Table opening | 190 mm |
| Integral fence | 500 mm |
| Engine power | 3,8 kW S6 400V (3kW S1) |
| Circular saw: | |
| Sliding table | 2000 x 285 mm |
| Saw blade diametermax/min | 315 mm/250 mm |
| Tilting | 90° - 45° |
| max. cutting height 90° 45 ° | |
| sawblade 315 | |
| Engine power | 3,8 kW S6 400V (3kW S1) |
| Weight | 850 kg |
Technical Specifications
| Table width | 320 mm |
| Table length | 1500 mm |
| Shaft diameter | 100 mm |
| Pieces of knives | 3 Stück |
| Rotation speed | 5000 |
| Engine power | 3,8 kW S6 400V (3kW S1) |
| Work piece height, min/max | 4 - 230 mm |
| Feeding speed | 7m/min |
| Max. workpiece height | 125 mm |
| Spindle travel | 160 mm |
| Max. tool diameter below table | 180 mm |
| Max. tool diameter above table | 250 mm |
| Spindle speeds | 8000/6000/3500/1400 |
| Table opening | 190 mm |
| Integral fence | 500 mm |
| Engine power | 3,8 kW S6 400V (3kW S1) |
| Sliding table | 2000 x 285 mm |
| Saw blade diametermax/min | 315 mm/250 mm |
| Tilting | 90° - 45° |
| Engine power | 3,8 kW S6 400V (3kW S1) |
| Weight | 850 kg |
