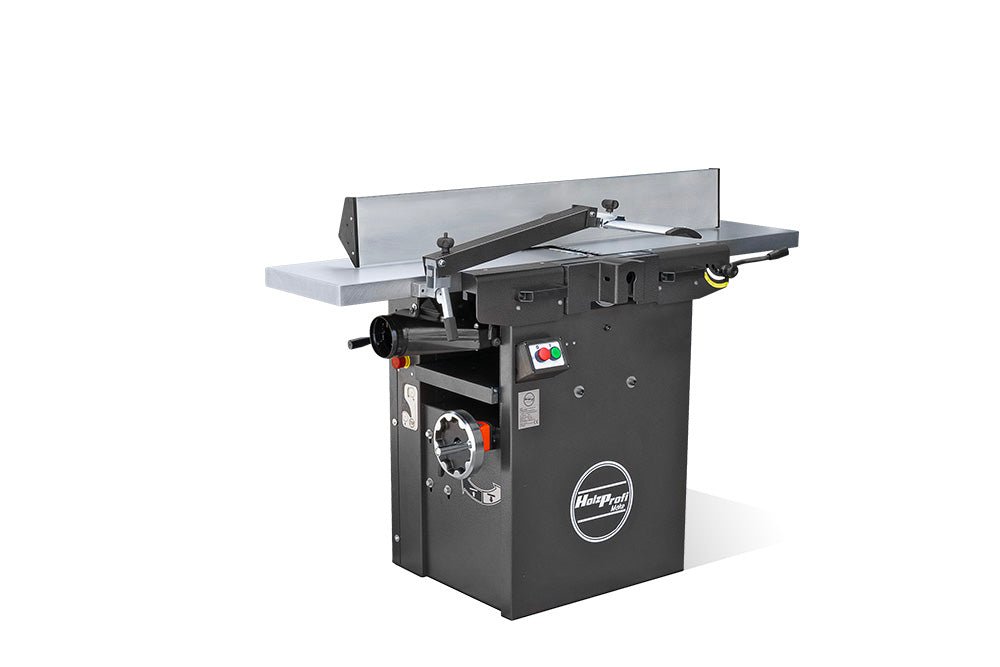

Planer \u0026 thickn. ADM310G Spiral Maker, 310mm, 400V
Planer \u0026 thickn. ADM310G Spiral Maker, 310mm, 400V
Regular price
8,610.00 GEL
Regular price
Sale price
8,610.00 GEL
Taxes included.
| engine power output S6 | 3.8 kW (3 kW-S1) |
| planer blades | 56, 4 turns |
| dimensions of the knives | 15 x 15 x 2.5 mm |
| shaft diameter | 75 mm |
| planing width | 300 mm |
| planing table length | 1400 mm |
| clearance height | 240 mm |
| feed rate | 6 m/min |
| suction diameter | 100 mm |
| thickness table | 310 x 600 mm |
| Tension | 400 V |
| Max. chip removal | |
| (depending on board width and wood type) | 3-5 mm |
| Weight approx. | 208 kg |
| Optional accessories: | |
| driving device | |
| service set for spiral planer blade shaft | |
Technical Specifications
| engine power output S6 | 3.8 kW (3 kW-S1) |
| planer blades | 56, 4 turns |
| dimensions of the knives | 15 x 15 x 2.5 mm |
| shaft diameter | 75 mm |
| planing width | 300 mm |
| planing table length | 1400 mm |
| clearance height | 240 mm |
| feed rate | 6 m/min |
| suction diameter | 100 mm |
| thickness table | 310 x 600 mm |
| Tension | 400 V |
| (depending on board width and wood type) | 3-5 mm |
| Weight approx. | 208 kg |
